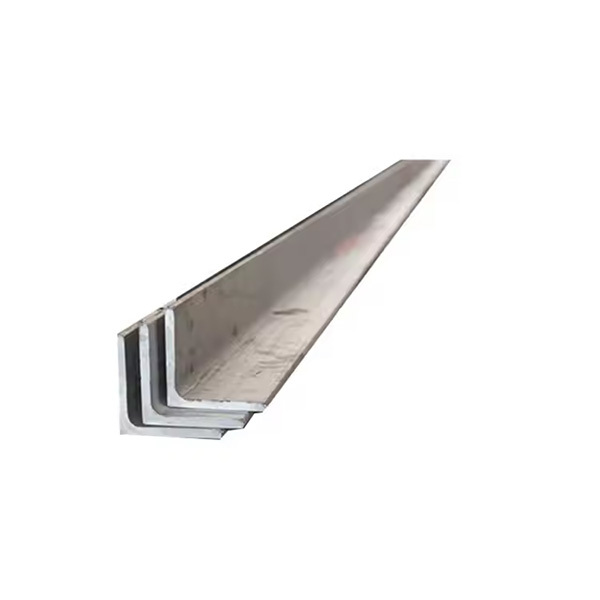

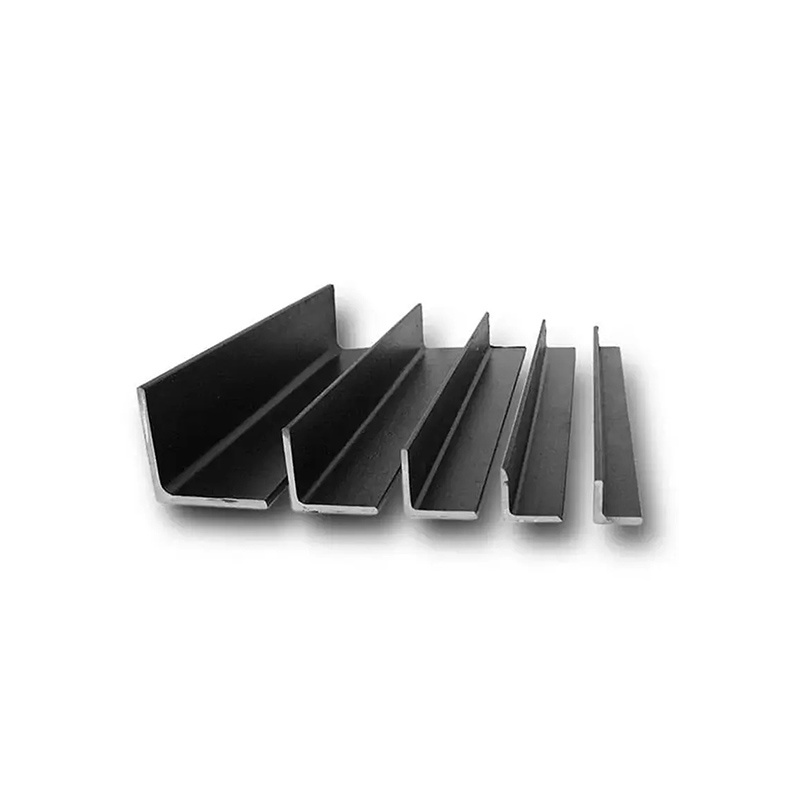

Carbon Steel Angle

Angle steel, commonly known as angle iron, is a long strip of steel with two sides perpendicular to each other. Angle steel can be composed of different force components according to the different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, and warehouse shelves. Angle steel is carbon structural steel for construction, is a simple section of steel, mainly used for metal components and the framework of the plant. In use, it is required to have good weldability, plastic deformation performance and mechanical strength.

Keywords : SummitSteel

Classification :

Angle Steel

WhatsApp : ‪+8613325128755

E-mail : quote@ssgsteel.com

PRODUCT DETAILS

Product Description

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	H100100-H400400H15075 -H900300
Thickness	1-30mm
Width	15-400mm
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

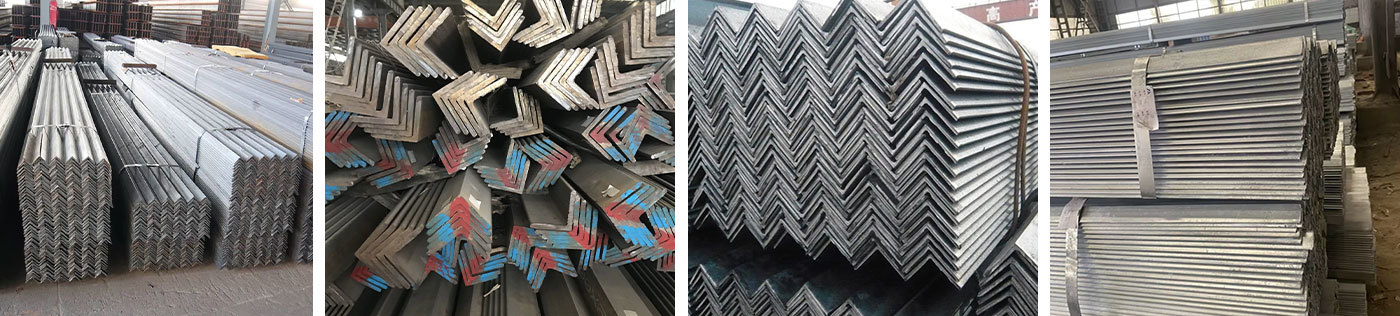

Factory appearance

model								Single Angle Steel								Double Angle Steel
		Round Corners	Centroid Moment	Cross-sectional area	quality	Moment of inertia	Section modulus		Radius of gyration			iy, 当 a 为下列数值
		R	Z0	A	quality	Ix	Wxmax	Wxmin	ix	ix0	iy0	6mm	8mm	10mm	12mm		14mm
		（mm）		(cm2)	(kg/m)	(cm4)	(cm3)		(cm)			(cm)
L90×	6	10	24.4	10.64	8.35	82.77	33.99	12.61	2.79	3.51	1.8	3.91	3.98	4.05	4.12		4.2
	7		24.8	12.3	9.66	94.83	38.28	14.54	2.78	3.5	1.78	3.93	4	4.07	4.14		4.22
	8		25.2	13.94	10.95	106.5	42.3	16.42	2.76	3.48	1.78	3.95	4.02	4.09	4.17		4.24
	10		25.9	17.17	13.48	128.6	49.57	20.07	2.74	3.45	1.76	3.98	4.06	4.13	4.21		4.28
	12		26.7	20.31	15.94	149.2	55.93	23.57	2.71	3.41	1.75	4.02	4.09	4.17	4.25		4.32
L100×	6	12	26.7	11.93	9.37	115	43.04	15.68	3.1	3.91	2	4.3	4.37	4.44	4.51		4.58
	7		27.1	13.8	10.83	131	48.57	18.1	3.09	3.89	1.99	4.32	4.39	4.46	4.53		4.61
	8		27.6	15.64	12.28	148.2	53.78	20.47	3.08	3.88	1.98	4.34	4.41	4.48	4.55		4.63
	10		28.4	19.26	15.12	179.5	63.29	25.06	3.05	3.84	1.96	4.38	4.45	4.52	4.6		4.67
	12		29.1	22.8	17.9	208.9	71.72	29.47	3.03	3.81	1.95	4.41	4.49	4.56	4.64		4.71
	14		29.9	26.26	20.61	236.5	79.19	33.73	3	3.77	1.94	4.45	4.53	4.6	4.68		4.75
	16		30.6	29.63	23.26	262.5	85.81	37.82	2.98	3.74	1.93	4.49	4.56	4.64	4.72		4.8
L110×	7	12	29.6	15.2	11.93	177.2	59.78	22.05	3.41	4.3	2.2	4.72	4.79	4.86	4.94		5.01
	8		30.1	17.24	13.53	199.5	66.36	24.95	3.4	4.28	2.19	4.74	4.81	4.88	4.96		5.03
	10		30.9	21.26	16.69	242.2	78.48	30.6	3.38	4.25	2.17	4.78	4.85	4.92	5		5.07
	12		31.6	25.2	19.78	282.6	89.34	36.05	3.35	4.22	2.15	4.82	4.89	4.96	5.04		5.11
	14		32.4	29.06	22.81	320.7	99.07	41.31	3.32	4.18	2.14	4.85	4.93	5	5.08		5.15
L125×	8	14	33.7	19.75	15.5	297	88.2	32.52	3.88	4.88	2.5	5.34	5.41	5.48	5.55		5.62
	10		34.5	24.37	19.13	361.7	104.8	39.97	3.85	4.85	2.48	5.38	5.45	5.52	5.59		5.66
	12		35.3	28.91	22.7	423.2	119.9	47.17	3.83	4.82	2.46	5.41	5.48	5.56	5.63		5.7
	14		36.1	33.37	26.19	481.7	133.6	54.16	3.8	4.78	2.45	5.45	5.52	5.59	5.67		5.74
L140×	10	14	38.2	27.37	21.49	514.7	134.6	50.58	4.34	5.46	2.78	5.98	6.05	6.12	6.2		6.27
	12		39	32.51	25.52	603.7	154.6	59.8	4.31	5.43	2.77	6.02	6.09	6.16	6.23		6.31
	14		39.8	37.57	29.49	688.8	173	68.75	4.28	5.4	2.75	6.06	6.13	6.2	6.27		6.34
	16		40.6	42.54	33.39	770.2	189.9	77.46	4.26	5.36	2.74	6.09	6.16	6.23	6.31		6.38
L160×	10	16	43.1	31.5	24.73	779.5	180.8	66.7	4.97	6.27	3.2	6.78	6.85	6.92	6.99		7.06
	12		43.9	37.44	29.39	916.6	208.6	78.98	4.95	6.24	3.18	6.82	6.89	6.96	7.03		7.1
	14		44.7	43.3	33.99	1048	234.4	90.95	4.92	6.2	3.16	6.86	6.93	7	7.07		7.14
	16		45.5	49.07	38.52	1175	258.3	102.6	4.89	6.17	3.14	6.89	6.96	7.03	7.1		7.18
L180×	12	16	48.9	42.24	33.16	1321	270	100.8	5.59	7.05	3.58	7.63	7.7	7.77	7.84		7.91
	14		49.7	48.9	38.38	1514	304.6	116.3	5.57	7.02	3.57	7.67	7.74	7.81	7.88		7.95
	16		50.5	55.47	43.54	1701	336.9	131.4	5.54	6.98	3.55	7.7	7.77	7.84	7.91		7.98
	18		51.3	61.95	48.63	1881	367.1	146.1	5.51	6.94	3.53	7.73	7.8	7.87	7.95		8.02
L200×	14	18	54.6	54.64	42.89	2104	385.1	144.7	6.2	7.82	3.98	8.47	8.54	8.61	8.67		8.75
	16		55.4	62.01	48.68	2366	427	163.7	6.18	7.79	3.96	8.5	8.57	8.64	8.71		8.78
	18		56.2	69.3	54.4	2621	466.5	182.2	6.15	7.75	3.94	8.53	8.6	8.67	8.75		8.82
	20		56.9	76.5	60.06	2867	503.6	200.4	6.12	7.72	3.93	8.57	8.64	8.71	8.78		8.85
	24		58.4	90.66	71.17	3338	571.5	235.8	6.07	7.64	3.9	8.63	8.71	8.78	8.85		8.92

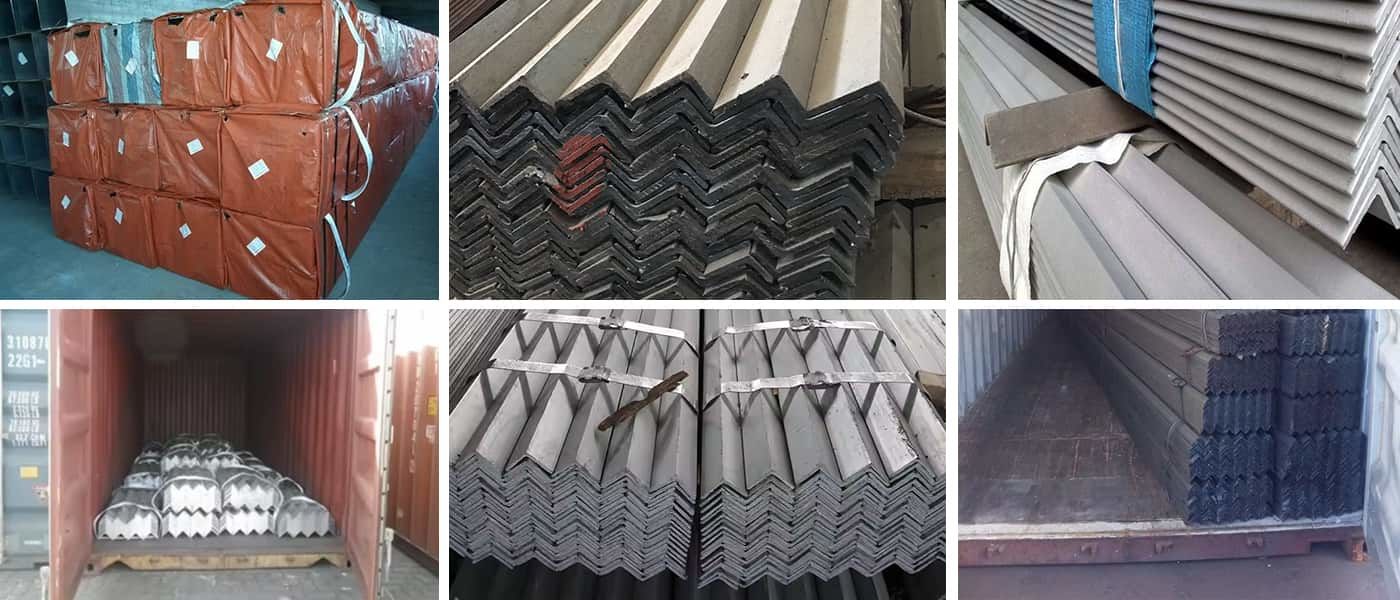

Packing and delivery

We can provide,wooden pallet packaging,Wooden packing,Steel strapping packaging,Plastic packaging and other packaging methods.We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation

CUSTOMER VISIT

Our factory is equipped with advanced professional production facilities and mature technologies, and has a high-quality professional management and technical talent team. Currently, it holds multiple international standard certifications such as ISO, SGS, API, CE, ABS, etc., ranking among the leading levels in China!

Shandong SummitSteel International Trading Co., Ltd.

FACTORY WORKSHOP

CERTIFICATES

VERIFICATION OF CONFORMITY

POWER OF ATTORNEY

QUALITY MANAGEMENT SYSTEM CERTIFICATION

CERTIFICATE OF QUALITY MANAGEMENT SYSTEM

ANNEXL

ATTESTATION

POWER OF ATTORNEY

OFAPPRECIATION

PARTNERS

APPLICATION FIELD

New Energy

Energy extraction

Precision Manufacturing

Aerospace

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:lt's my first time to import steel products, can you help me with it?

A: Of course, we have agent to arrange the shipment and we will do it with you.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.
